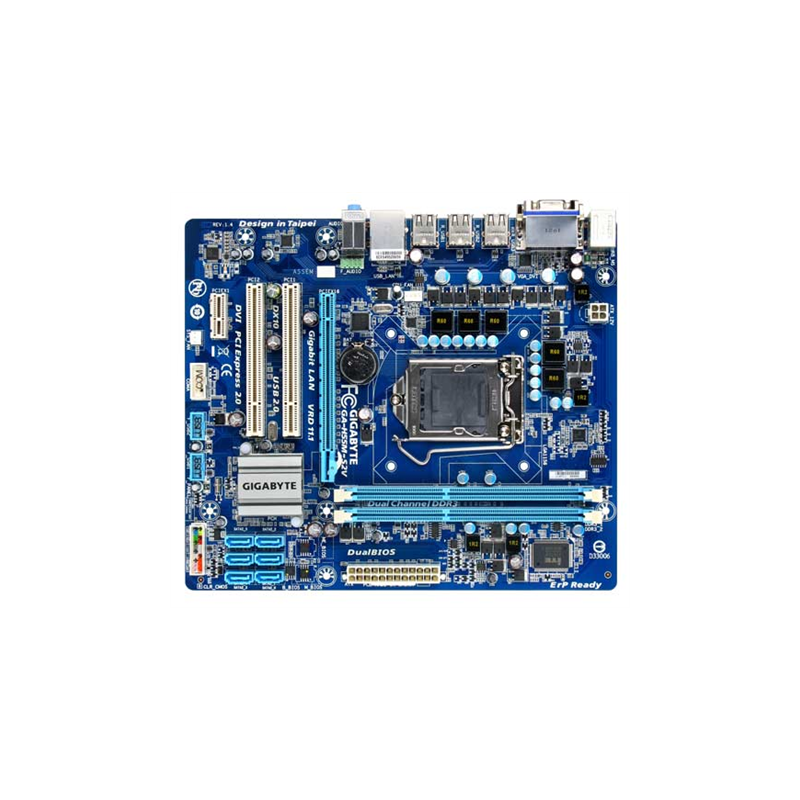

Placa-Mãe Gigabyte GA-H55M-S2V LGA1156 DDR3 2200+
A Placa-Mãe Gigabyte GA-H55M-S2V é recomendada para processadores Intel no soquete LGA1156, e memória DDR3.
Informações Técnicas Gigabyte GA-H55M-S2V
CPU |
- Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor /Intel® Core™ i3 series processor in the LGA1156 package
- L3 cache varies with CPU
|
Chipset |
- Intel® H55 Express Chipset
|
Memória |
- 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
- Dual channel memory architecture
- Support for DDR3 2200/1800/1600/1333/1066/800 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
Áudio |
- Realtek ALC888B codec
- High Definition Audio
- 2/4/5.1/7.1-channel (Note 4)
|
LAN |
- 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
|
Slots de Expansão |
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 2.0 standard.)
- 1 x PCI Express x1 slot
- 2 x PCI slots
|
Conectores Internos |
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 2 x USB 2.0/1.1 headers
- 1 x serial port header
- 1 x clearing CMOS jumper
|
Conectores do Painel Traseiro |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port (Note 2)
- 1 x DVI port (Note 2)(Note 3)
- 8 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In/Line Out/Microphone)
|
